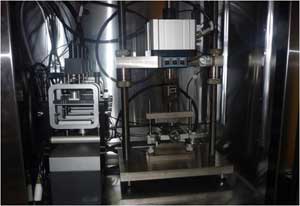

14 KN Pneumatic-Universal Testing Machine with Pneumatic Control Valves and Digital Control Technology

Instrument Detail

Make        : IPC Global, Australia
Model       :

Working Principles, Specification and Applications

1. Integrated Multi-Axis Control System (IMACS) Digital Controller
2. UTS Software with test modules for international and local standards
3. Can work for wide range of paving materials
4. Environmental Chamber

DIFFERENT JIGS TO BE USED IN THE ABOVE EQUIPMENT

(i) FATIGUE LIFE OF COMPACTED HMA SUBJECTED TO REPEATED FLEXURE BENDING (AASHTO:T 321-07)

Working Principles

1. Fatigue life and energy of 380 mm long x 50 mm thick x 63 mm wide  beam specimens laboratory or field compacted HMA and subjected to repeated flexure bending until failure
2.  Select desired initial strain (250 to 750 microstrain), loading frequency ( 5 to 10 Hz) and the load cycle intervals
3.  Apply 50 load cycles at a constant strain (250 to 750 microstrain) and find stiffness at the 50th load cycle which is used as estimate of the initial stiffness
4. Minimum of 10,000 load cycles ensures specimen does not decrease in stiffness too rapidly
5.  Failure point: Specimen exhibits a 50 % reduction in stiffness relative to initial stiffness

User Instructions

• Prepare the beam sample
• Place the sample in the jig meant for testing beam
• Place the LVDTs at specific location in IMACS for fatigue test
• Put the sample in the chamber at the testing temperature
• Leave sample for conditioning for minimum of five hours
• Operate the system

Instrument Usage Charges (Including GST)

• Industry:   Rs. 2.0 Lakh (Two Lakh)
• University: Rs. 1.50 Lakh (One Lakh Fifty Thousand)
• National Labs/R&Ds: Rs. 1.50 Lakh (One Lakh Fifty Thousand)

(ii) JIG FOR INDIRECT TENSILE STRENGTH (EN 12697-26:2004 & ASTM D 4123 )

Working Principles

This test method covers procedures for preparing and testing laboratory-fabricated or field-recovered cores of bituminous mixtures to determine resilient modulus values using the repeated-load indirect tension test. The procedure described covers a range of temperatures, loads, loading frequencies, and load durations.

User Instructions

• Prepare the Marshal sample
• Place the sample in the jig meant
• Place the LVDTs at specific location in IMACS
• Put the sample in the chamber at the testing temperature
• Operate the system

INSTRUMENT USAGE CHARGES INCLUDING GST (For ITS Test)

• Industry:   Rs. 90,000.00 (Ninty Thousand)
• University: Rs. 67,500.00 (Sixty Seven Thousand Five Hundred)
• National Labs/R&Ds: Rs. 67,500.00 (Sixty Seven Thousand Five Hundred)

INSTRUMENT USAGE CHARGES INCLUDING GST (For Resilient Modulus Test)

• Industry:   Rs. 2.95 Lakh (Two Lakh Ninety Five Thousand)
• University: Rs. 1.18 Lakh (One Lakh Eighteen Thousand)
• National Labs/R&Ds: Rs. 1.18 Lakh (One Lakh Eighteen Thousand)

(iii) DETERMINATION OF RESISTANCE OF BITUMINOUS MIXTURES TO PERMANENT DEFORMATION, CONFORMING TO BS EN 12697-25:2005 (METHODS A & B)

Working Principles, Specification and Applications:

Test method A:  Determining the Dynamic and Static creep characteristics of bituminous mixtures by means of an uniaxial cyclic compression test
Test method B: Determining the creep characteristics of bituminous mixtures by means of the triaxial cyclic compression test.

User Instructions

• Prepare the Marshal sample
• Place the sample in the jig meant
• Place the LVDTs at specific location in IMACS
• Put the sample in the chamber at the testing temperature
• Leave sample for conditioning for minimum of five hours
• Operate the system

INSTRUMENT USAGE CHARGES INCLUDING GST

• Industry:   Rs. 90,000.00 (Ninty Thousand)
• University: Rs. 67,500.00 (Sixty Seven Thousand Five Hundred)
• National Labs/R&Ds: Rs. 67,500.00 (Sixty Seven Thousand Five Hundred)
